Numerical Modeling Using Finite Elements

The following is a sampling of analytical projects using FEA methods.

A variety of equipment, design conditions of pressure & temperature, materials of construction can be modeled via finite element methodologies. FEA can be applied to new designs and to trouble shooting of exisiting problem designs. ASME VIII Div 2 code provides rules for the evaluation of the design by analysis approach. API 579 Level 3 fitness for service assessments are frequent candidates for FEA tools.


vessel access way

Vessel with oblong access connection

 API tank door

API tank doorway

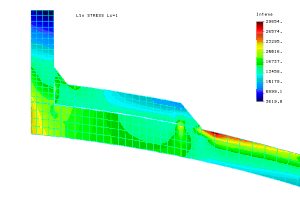

Vessel nozzle

Vessel top nozzle

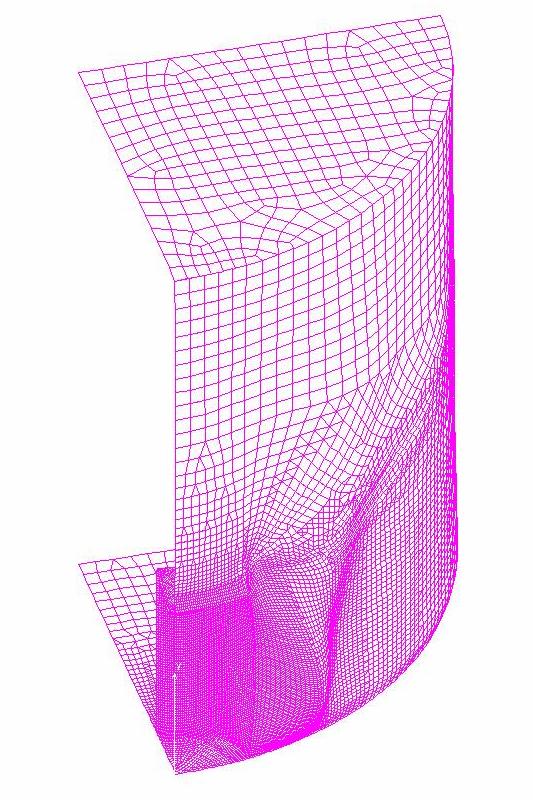

API tank

Distortion at API Tank doorway

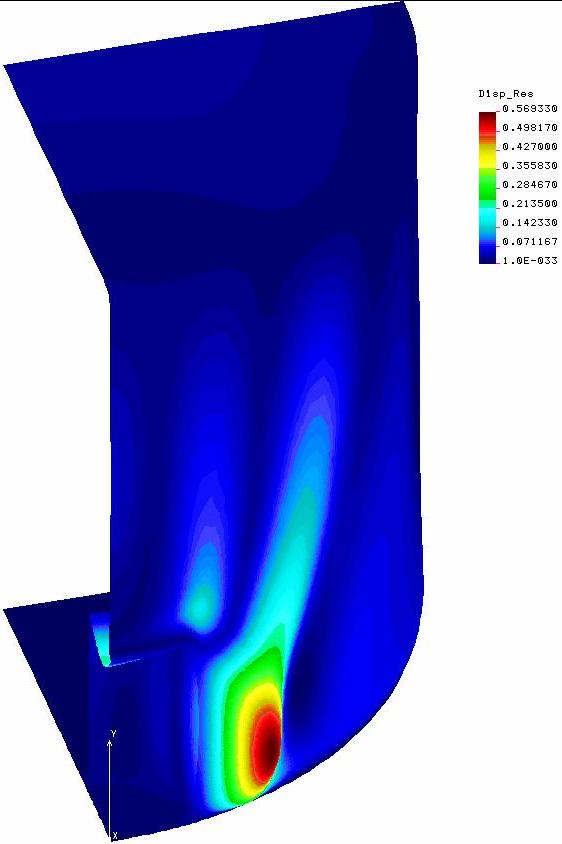

API tank

API Tank Distortion

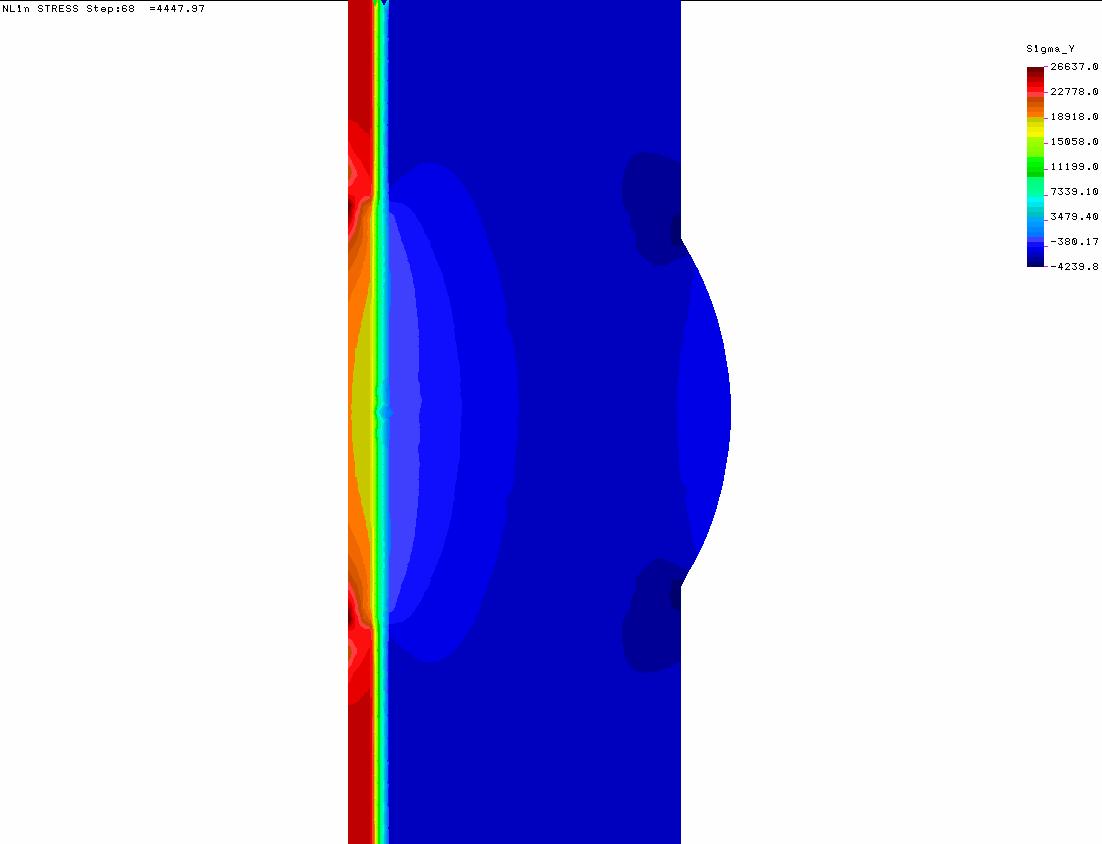

Tri-metal weld zone

Tri-metal weld zone
