FCC Unit Regenerator Revamp

An FCC revamp, alongside a Coker revamp rank at the top of technical & project managment challenges.

EDA take delight in having participated and provided leadership in well over a dozen such projects. The advantage of using a specialty firm such as EDA is the focused skill sets brought to bear on the project. Skill sets are matched to the project specifics thereby maintaining quality, budget and schedule. Careful matching of skills to the project objectives can prevent needless burn up of hours in non value added activity typically experienced by major EPC organizations when executing revamp plant engineering projects. Engineering cost of 7.5% to 12.5% TIC are achievable versus engineering costs of 18% to 25% TIC costs for major EPC firms.

For comparison, a specialty engineering firm can execute in roughly 35% to 50% of the manhours required by large organization EPC firms. The difference - organizational structure and focus!


Aerial view of site

Aerial view of site

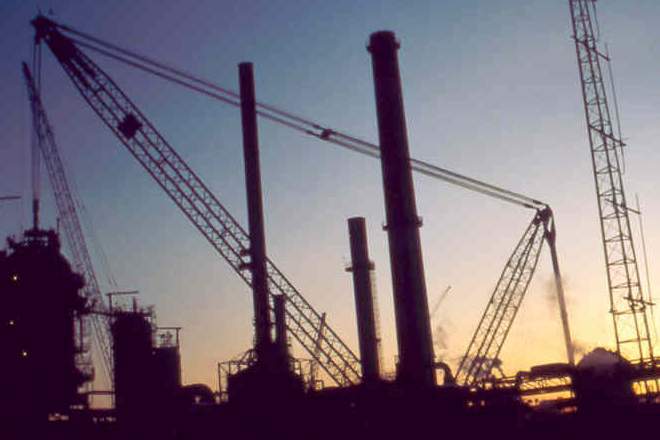

Early morning lift

Early morning lift

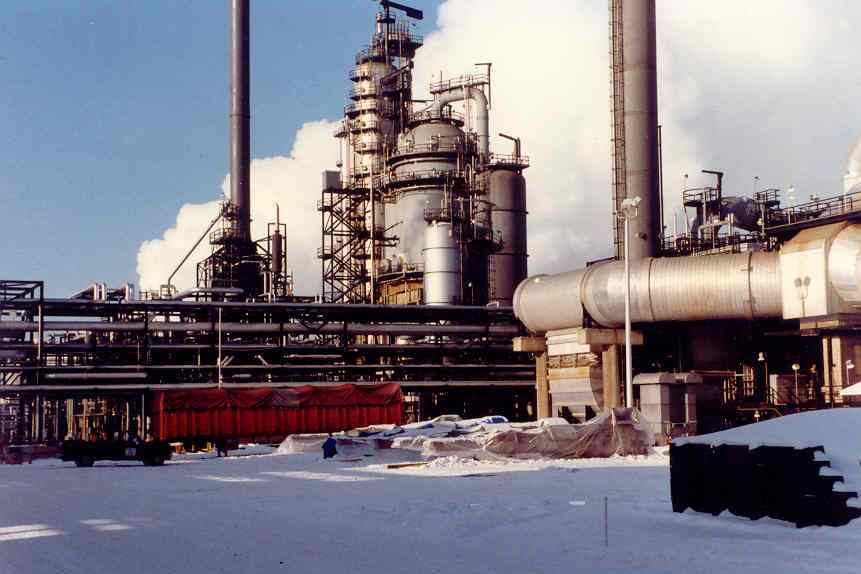

Staging area & unit view=

Staging area & unit view

Lift out from staging frame=

Lift out from staging frame

Heavy lift crane

Heavy lift crane

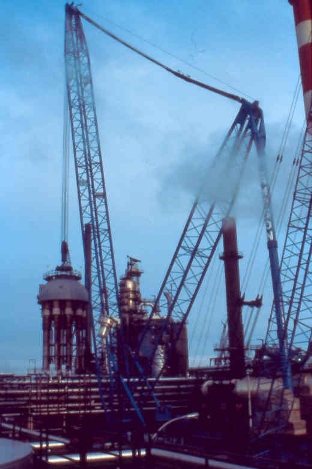

Lift out over pipe rack=

Lift out over pipe rack

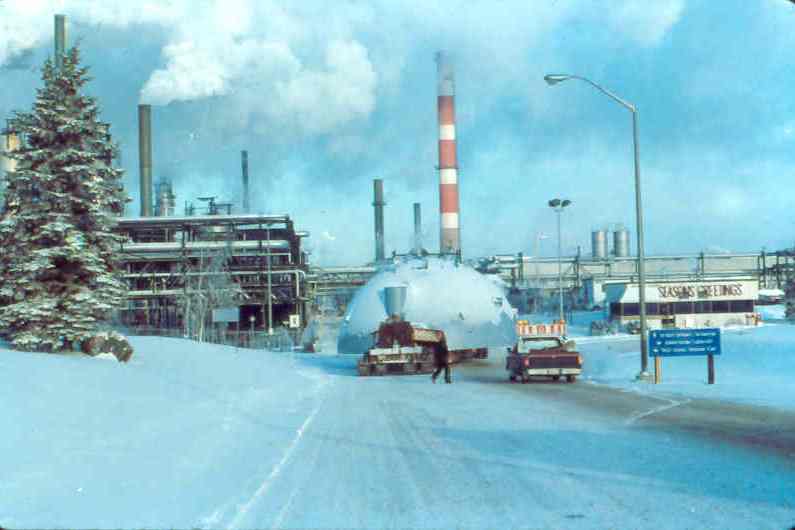

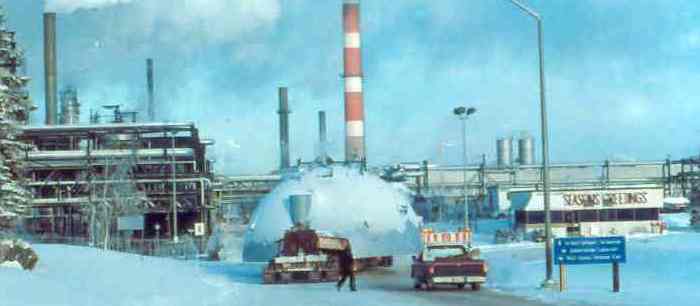

Transport of head

Transport of head

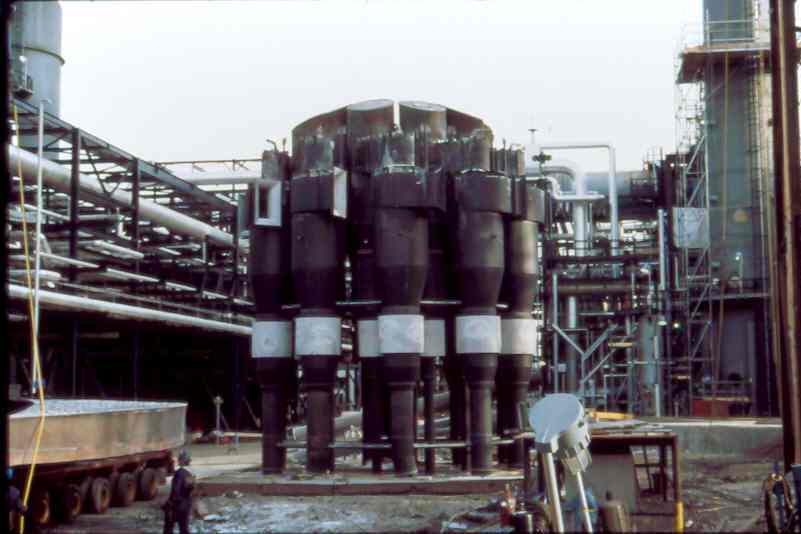

seam leaking

Dismantling of cyclones

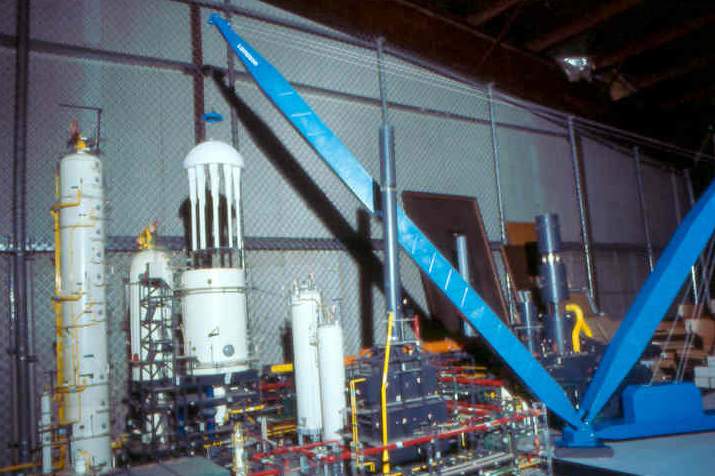

Preliminary planning model

Legacy planning model


more to come !
